This Smart Object provides a double busbar feeder
Smart Object content

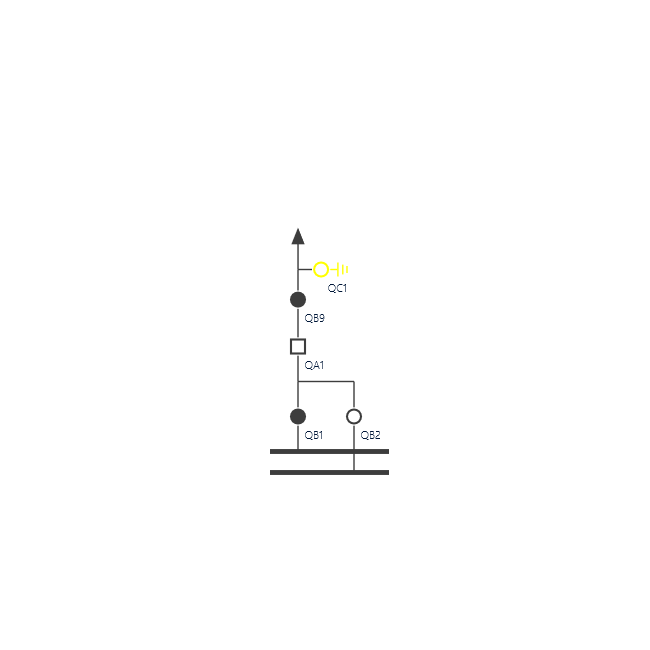

- Symbols for use in a single-line diagram
- Feeder in upwards and downwards feeding orientation
- Interfaces for Command Processing and Diagnostics
- Vertical and horizontal Circuit breaker orientations
- Customizing via released properties
- Supports Automatic Line coloring
- Supports IEC and ANSI style symbols for switchgear
|
Quantity |
Asset type |
Name |
Type |
|
1 |
Double Busbar Feeder feeding upwards |
Feeder_Up |
IEC and ANSI |
|
1 |
Double Busbar Feeder feeding downwards |
Feeder_Down |
IEC and ANSI |
|
1 |
Measured values |
MX_values |
- |
