Dot Chart
Categories:
Dashboard & Andon,
HMI
Product Type:
Graphics & UI components,
Smart Object Template
Industry:
Automotive,
Energy & Infrastructure,
Food and Beverage,
General Manufacturing,
Life Science & Process Industry
zenon Version: 16, 15

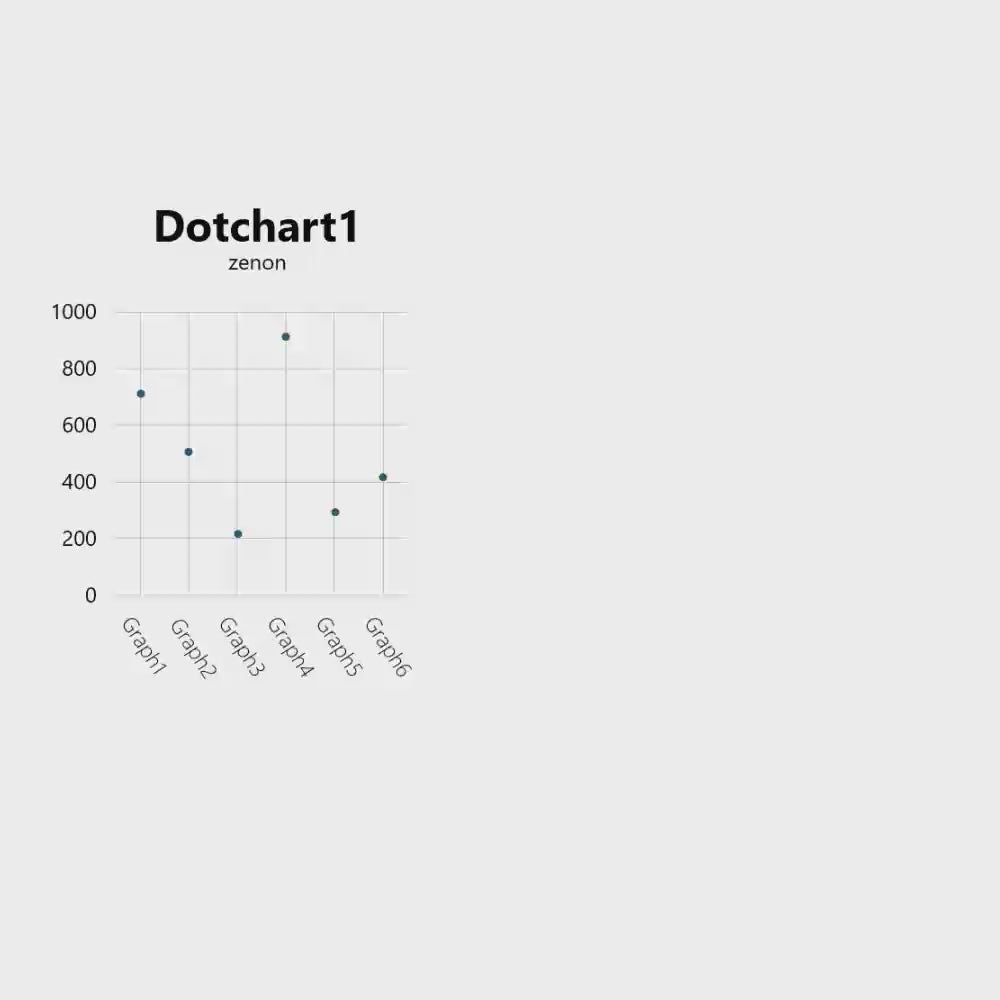

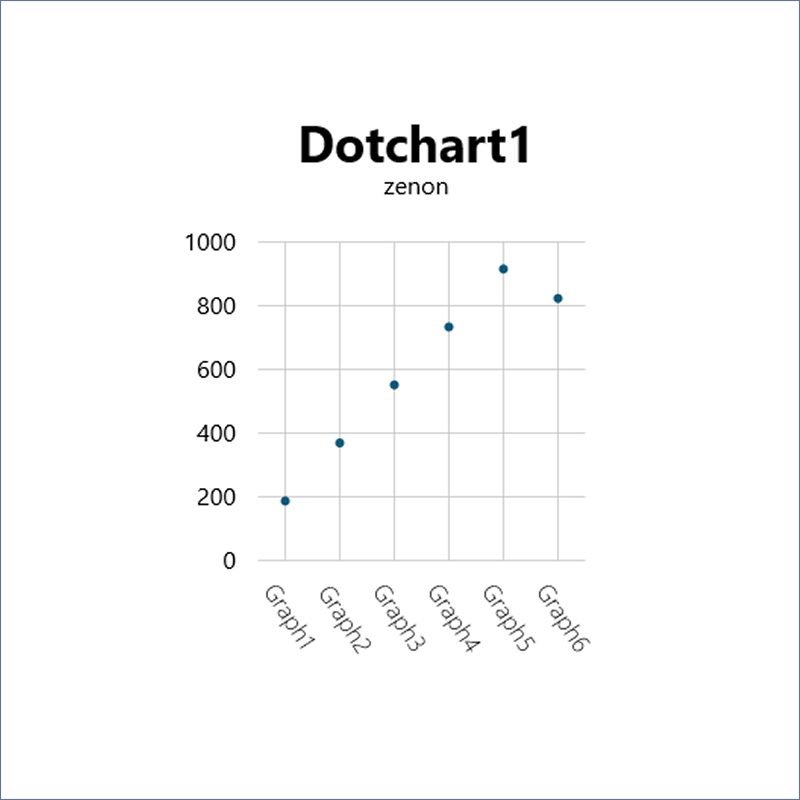

The Dot Chart Smart Object Template provides a compact visualization for comparing three to six SCADA process values on a common scale. Each configured input variable is represented by a dot, allowing operators to quickly identify differences, high or low values, deviations, and abnormal process conditions across equipment or measurement points.
Content:
-
Dot Chart Symbol for integration into dashboards.
-
Support for three to six configurable input variables, displayed as individual dots indicating the current value.
-
Settings popup available in the Service Engine for adjusting chart settings:
-
-
Amount of graphs shown
-
-
-
Maximum value of the input variables
-
-
-
Graph color
-
-
-
Graph labels
-
-
-
Settings button visibility toggle switch
-
-
Released properties for configuring chart settings:
-
-
Amount of graphs shown
-
-
-
Maximum value of the input variables
-
-
-
Graph color
-
-
-
Graph labels
-
-
-
Title
-
Subtitle
-
| File type: | .so |
| File size: | 293 KB |
| SOT version: | 4 |
| Related products: | Lollipop Chart |
