Double Bus Coupler

This Smart Object provides a double busbar feeder.

Smart Object content

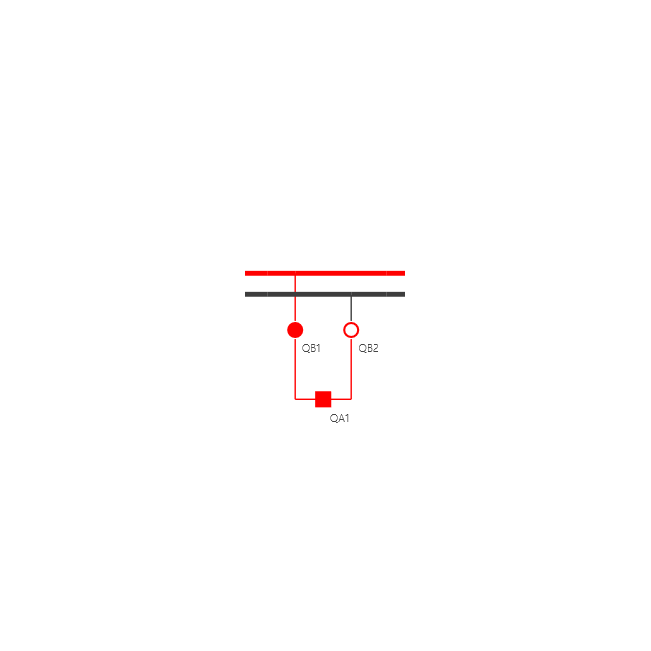

• Symbols for use in a single-line diagram
• Bus coupler where switchgear is located below busbar
• Interfaces for Command Processing and Diagnostics
• Customizing via released properties
• Supports Automatic Line coloring
• Supports IEC and ANSI style symbols for switchgear

Nested Smart Object Templates

Additional smart object templates will be imported automatically

• Command Processing
• Interface_energy
