Lollipop Chart
Categories:
Armaturenbrett,
HMI
Product Type:
Graphics & UI components,
Smart Object Template
Industry:
Automotive,
Energy & Infrastructure,
Food and Beverage,
General Manufacturing,
Life Science & Process Industry
zenon Version: 16, 15
The Lollipop Chart Smart Object Template provides a compact visualization for comparing three to six process values on a common scale. Each configured input variable is displayed as a lollipop, allowing operators to quickly identify differences, high or low values, deviations, and abnormal process conditions across equipment or measurement points.
Content:
-

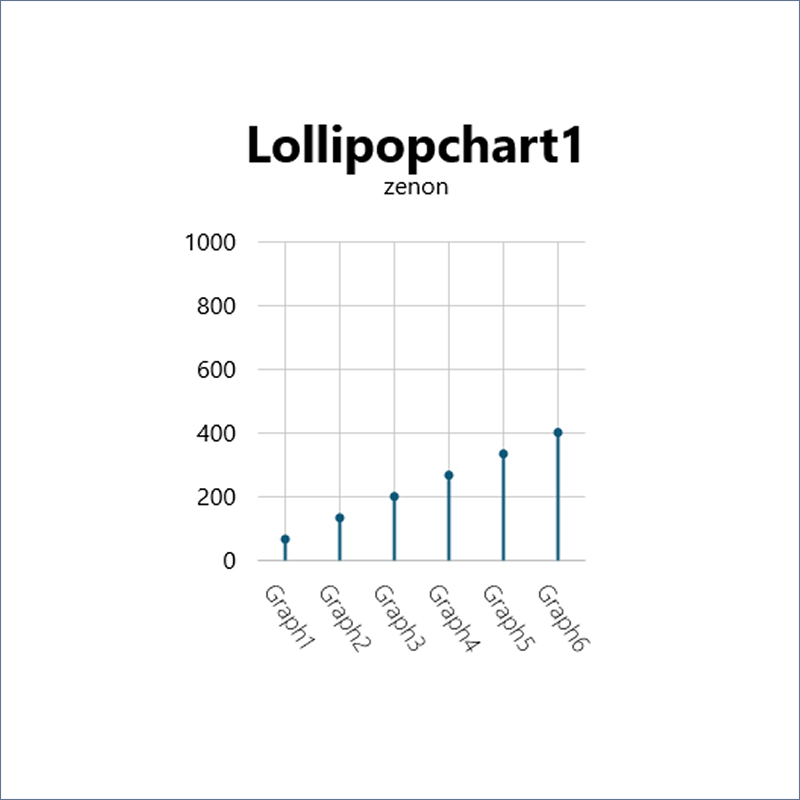

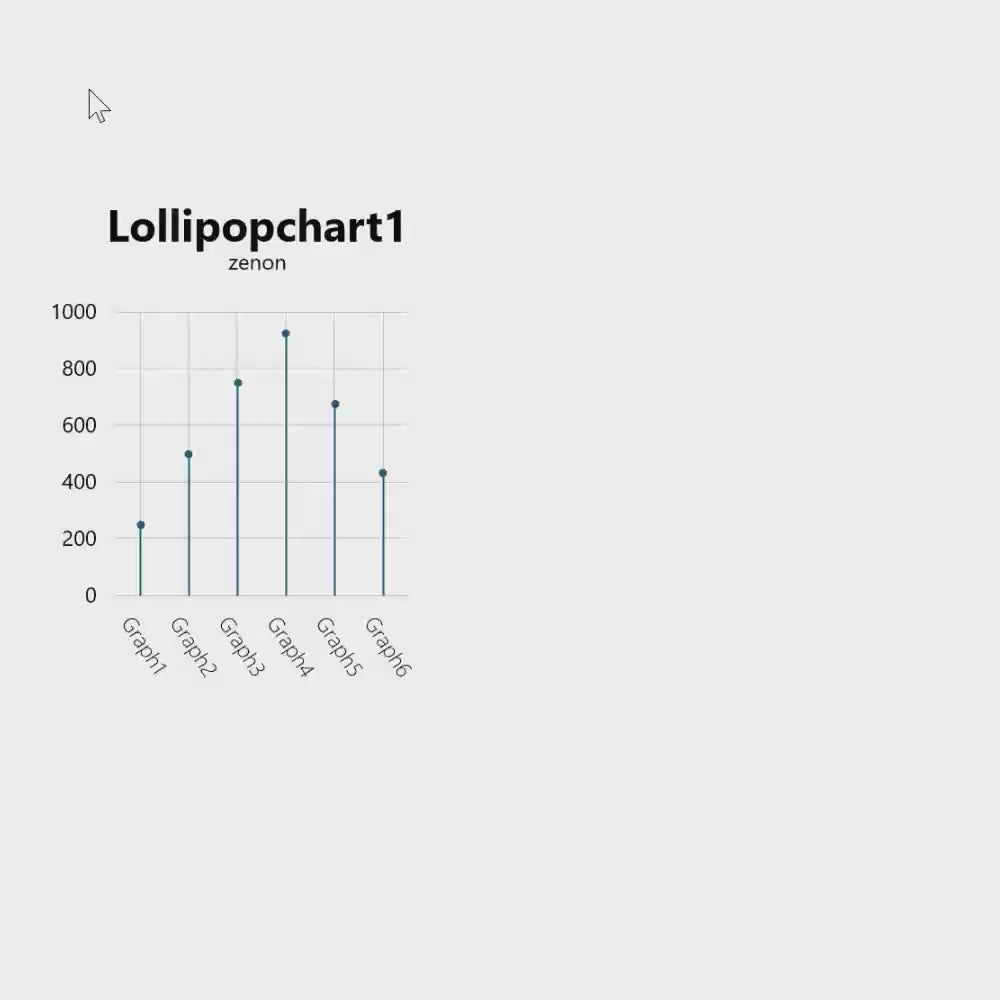

Lollipop Chart Symbol for integration into dashboards.
-
Support for three to six configurable input variables, displayed as individual lollipops with a marker indicating the current value.
-
Configuration popup available in the Service Engine for adjusting the chart settings:
-
-
Amount of graphs shown
-
-
-
Maximum value of the input variables
-
-
-
Graph color
-
-
-
Graph labels
-
-
-
Checkbox to show a settings button in the chart
-
-
Released properties for configuring the same chart settings:
-
-
Amount of graphs shown
-
-
-
Maximum value of the input variables
-
-
-
Graph color
-
-
-
Graph labels
-
-
-
Title
-
Subtitle
-
| File type | .so |
| File size | 158 KB |
| SOT version | 2 |
| Related products | Dot Chart |
