GIS Single Bus Feeder
Normaler Preis€0,00
/
inkl. MwSt.
No reviews
Categories:
Substation
Product Type:
Smart Object Template
Industry:
Energy & Infrastructure
zenon Version: 14

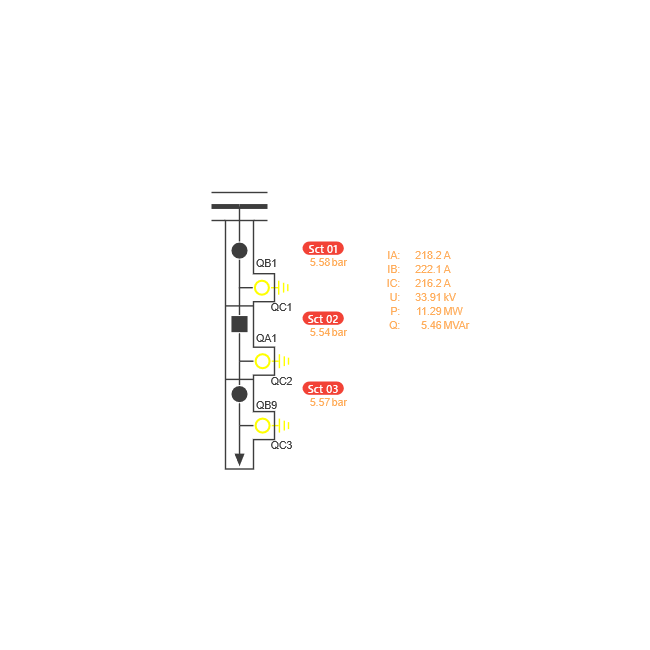

The Smart Object provides a Single Busbar Feeder for a Gas Insulated Substation
Smart Object content
- Symbols for use in a single-line diagram
- Feeder in upwards and downwards feeding orientation
- Interfaces for Command Processing and Diagnostics
- Vertical and horizontal Circuit breaker orientations
- Provides Insulation Gas Pressure Monitoring
- Customizing via released properties
- Supports Automatic Line coloring
- Supports IEC and ANSI style symbols for switchgear
|
Quantity |
Asset type |
Name |
Type |
|
1 |
GIS Single Busbar Feeder feeding upwards |
Feeder_Up |
IEC and ANSI |
|
1 |
GIS Single Busbar Feeder feeding downwards |
Feeder_Down |
IEC and ANSI |
|
1 |
GIS Single Feeder No Busbar |
Feeder_No_Busbar |
IEC and ANSI |
|
1 |
Measured values |
MX_values |
- |
Nested Smart Object Templates
- CommandProcessing
- Interface_energy
- GIS_GasSection
| Product file size: | 11 350 KB |
| File type: | .so |
| SOT version: | 4 |
