This Smart Object provides a double busbar feeder.
Smart Object content
- Symbols for use in a single-line diagram

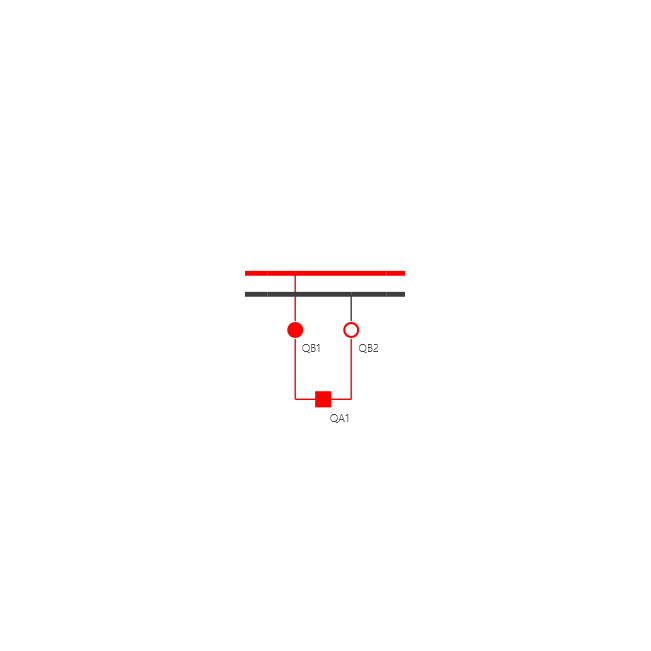

- Bus coupler where switchgear is located below busbar
- Interfaces for Command Processing and Diagnostics
- Customizing via released properties
- Supports Automatic Line coloring
- Supports IEC and ANSI style symbols for switchgear
|
Quantity |
Asset type |
Name |
IEC Type |
|
1 |
Double Busbar Bus Coupler |
BusCoupler_down |
IEC and ANSI |
|
1 |
Measured values |
MX_values |
- |
